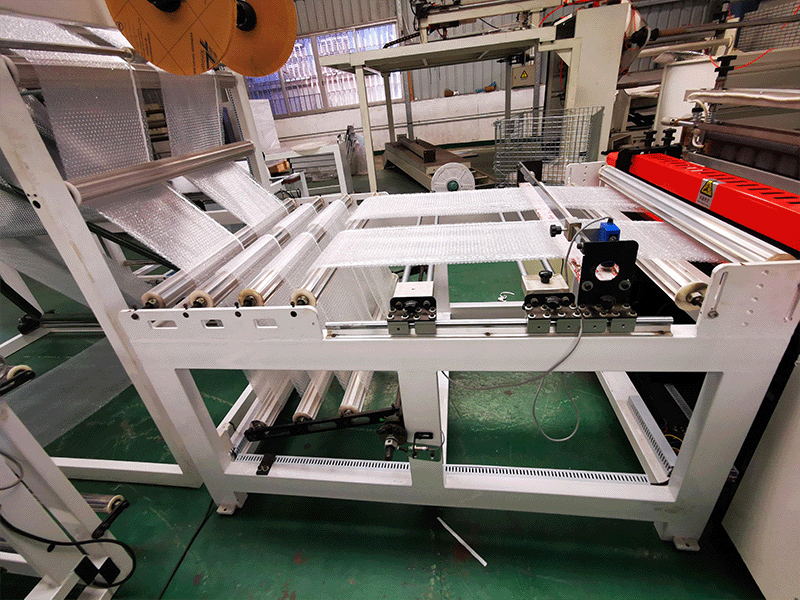

As a professional air bubble pouch machine, it follows a streamlined "unwinding → double-sealing → cutting → collection" workflow. EPE foam or bubble film (raw material for air bubble bags) is fed stably via the unwinding unit, then pressed into double-sealed air bubble bags by high-temp sealing heads for tight, protective seals.

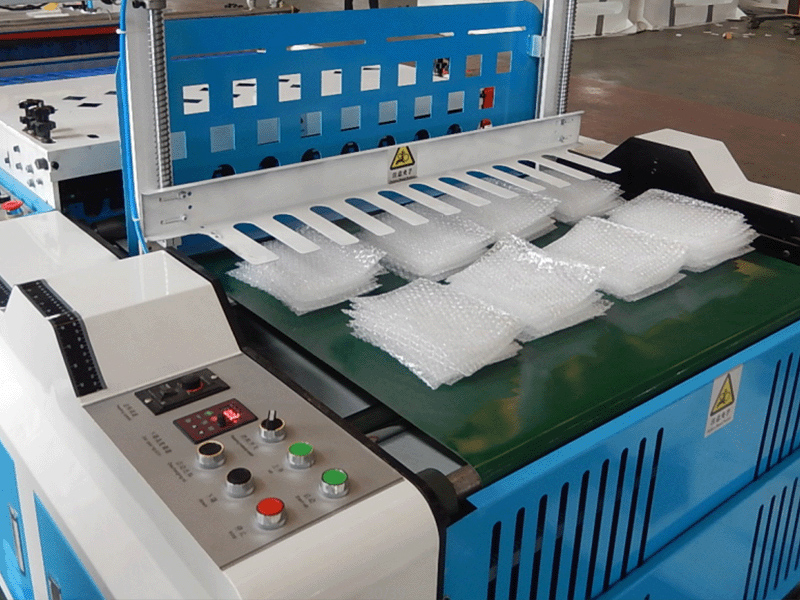

With "two-out" parallel sealing and cutting components, this air bubble pouch machine produces 2 air bubble bags per cycle (max 100/min). After cutting to set sizes, finished air bubble bags are auto-conveyed to the storage table for orderly stacking. A simple control panel lets users adjust air bubble bag length, width, and sealing temperature easily.
Double-seal air bubble bag production: Specializes in making double-sealed air bubble bags and EPE foam bags, ensuring strong sealing that enhances cushioning and moisture resistance for packaged items.
"Two-out" high efficiency for air bubble pouches: Supports simultaneous production of 2 air bubble bags/pouches, with a maximum speed of 100 bags per minute—far outperforming single-out air bubble pouch machines.
Dedicated storage for air bubble bags: Equipped with a storage table that collects and arranges finished air bubble bags neatly, reducing manual sorting work and boosting post-production efficiency.
Versatile for air bubble/bubble film materials: Adapts to different thicknesses of EPE foam and bubble film (core materials for air bubble bags), meeting diverse air bubble pouch packaging needs.
Adjustable air bubble bag parameters: Allows flexible setting of air bubble bag length, width, and sealing temperature via the panel—suitable for small electronics air bubble pouches to large furniture air bubble bags.
Stable air bubble pouch production: Adopts tension control in unwinding and precise temperature control in sealing, ensuring consistent air bubble bag quality (uniform seals, no burrs) during long runs.
| Model | ZT100-BM |
| Raw materials | Air Bubble Film/EPE Foam |
| Maximum width | 70-900mm |
| Maximum length | 70-1000mm |
| Production Capacity | 30-120 per minute |
| Total Power | 5.5 |
| Total Weight | 1200 |
| Power Supply | 220V,50Hz,singlephase |
