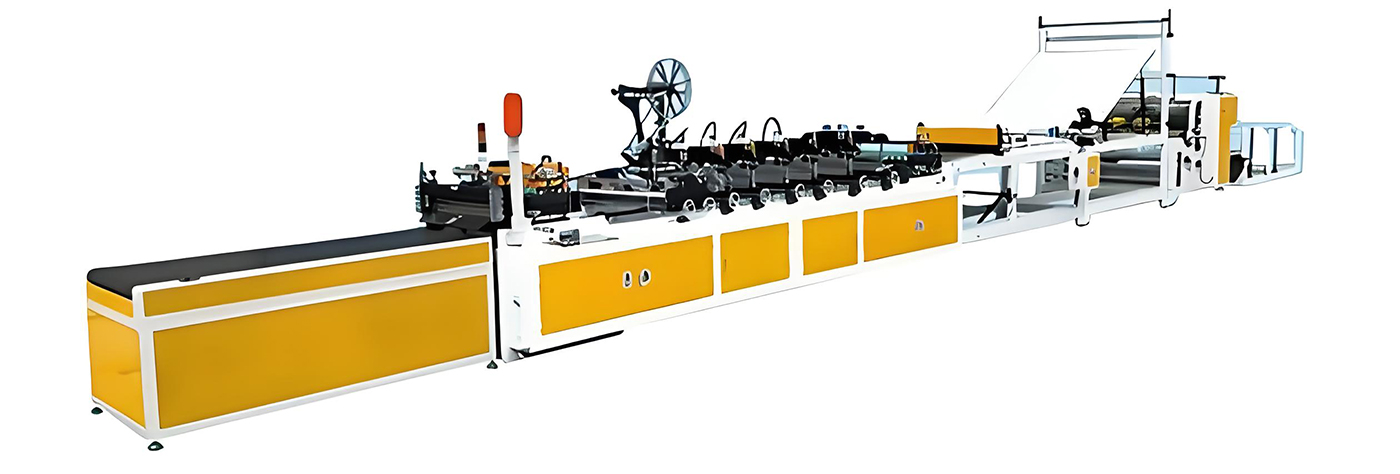

As a multi-functional air bubble film bag machine (laminated with kraft paper, PE film, aluminum foil), it has three core units: bubble lamination unit, film folding unit, and three-seal edge sealing unit—differentiated from two-seal models by its sealed bottom + two-side sealing design.
First, the lamination unit bonds outer materials (kraft paper, aluminum foil, BOPP film, pearlized film) with inner bubble film; then, the folding unit shapes the laminated film into a mailer structure (with the bottom folded for sealing); finally, the edge-sealing unit seals the two sides and bottom simultaneously to form a tight three-seal mailer. Casted frames ensure low-noise operation, while the dual servo color tracking system avoids material deviation. It can produce three-seal versions of kraft paper bubble envelopes, aluminum foil laminated bubble envelopes, and EPE foam bubble envelopes—offering better leakproof and protective performance than two-seal mailers.
Three-seal structure design: Seals two sides + bottom simultaneously, providing stronger sealing and leakproof performance than two-seal mailers—better protecting goods from moisture and external impact.
Multi-material compatibility: Works as kraft paper bubble mailer machine, aluminum foil bubble mailer machine, BOPP film bubble mailer machine, EPE foam bubble mailer machine—supports lamination with kraft paper, PE film, aluminum foil, pearlized film.
Efficient production: Max speed up to 100 three-seal mailers per minute, with casted frames for stable, low-noise operation—meeting mass e-commerce mailing needs.
Advanced servo control: Dual servo color tracking system ensures precise material alignment, avoiding offset and ensuring consistent mailer size/quality.
Integrated workflow: Combines bubble lamination, film folding, and three-seal edge sealing into one line—simplifying production without separate steps.
Versatile three-seal mailers: Produces three-seal aluminum foil laminated, composite film, kraft paper, pearlized film bubble envelopes—adapting to scenarios requiring enhanced sealing.
| Production Capacity | 50-120 per minute |
| Type | Three Seal side |
| Minimum size of envelope | 100*100mm |
| Maximum size of envelope | 1000*1000mm |
| Power Supply | 380V, 50Hz/3 phases |
| Maximum Power | 28KW |
| Effective Power | 10KW |
| Weight | 7500kg |
