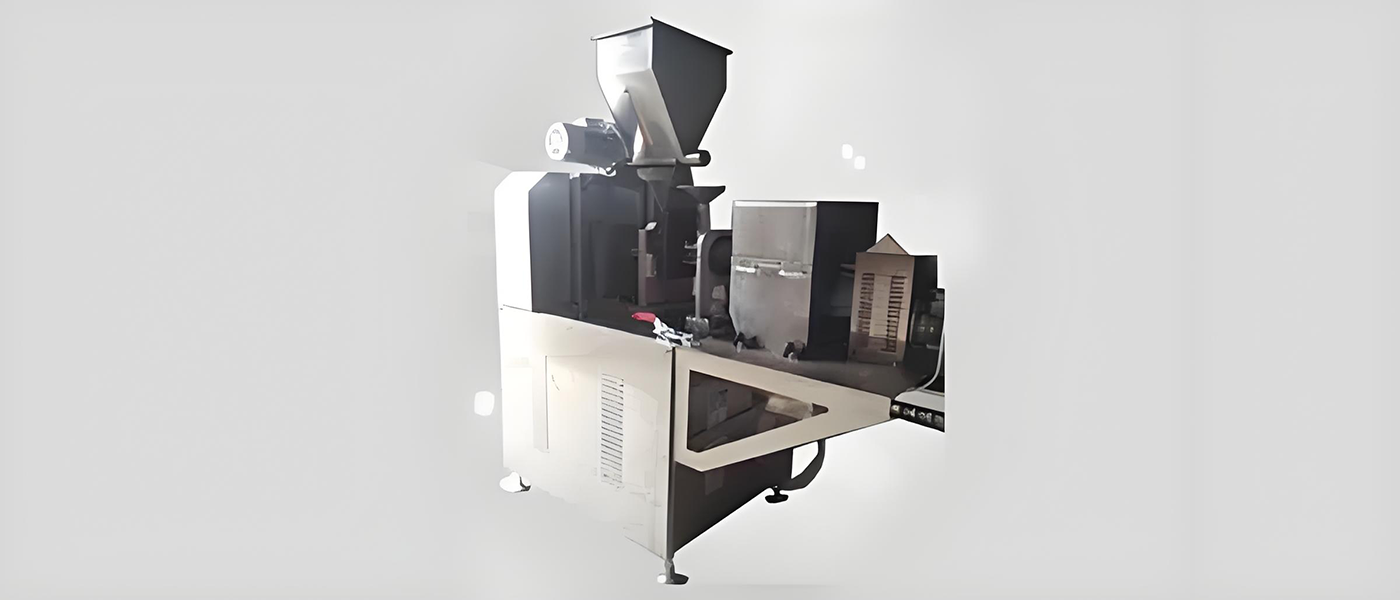

As a professional Loose Fill Machine for starch-based loose fill peanuts, it adopts an integrated extrusion-forming process to convert starch raw materials into lightweight, shock-absorbing loose fill. The workflow starts with raw material feeding: starch is conveyed to the 60A extruder (the core power unit), where it is fully mixed and plasticized under precise temperature control. The molten starch material is then extruded through a dedicated die head, and with the assistance of 2 blowers (10A each) providing high-pressure air, it forms irregular loose fill peanut particles.
The machine requires a total power supply of 60 Amps @ 480 Volts (with Neutral) plus 15A @ 120V to ensure stable operation of all components, while the recommended factory space is 1200sqft—sufficient for raw material storage, machine operation, and finished product collection. In terms of finished goods, it specializes in starch loose fill peanuts: currently, the finished shape is fixed (no variety available), but custom colors can be provided based on minimum order quantities. For density, it aligns with typical client target requirements, supporting production of loose fill with a density range of 0.4lb/cuft - 0.55lb/cuft to match different cushioning and packaging weight needs.
Specialized in starch loose fill: Focuses on producing eco-friendly starch loose fill peanuts, meeting market demand for sustainable packaging materials.
High production capacity: Maximum output reaches 100kg/hr (220lb/hr), capable of fulfilling large-volume loose fill supply for continuous packaging lines.
Clear power & space configuration: Requires 60 Amps @ 480 Volts (with Neutral) + 15A @ 120V (2 blowers @10A each + 60A extruder); recommended 1200sqft factory space for smooth operation.

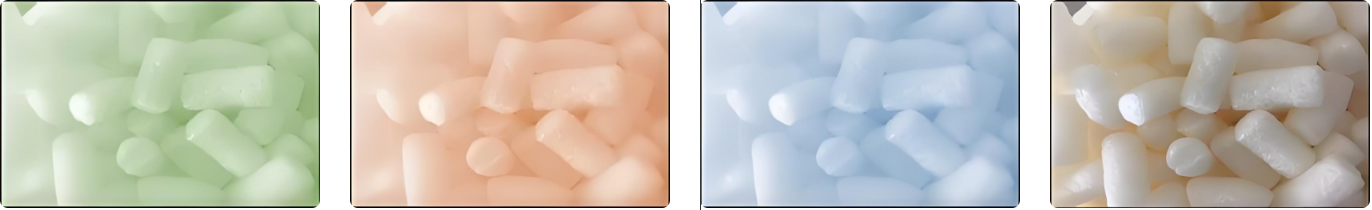

Customizable color options: Supports custom colors for starch loose fill peanuts (based on minimum order), adapting to brand packaging aesthetics or special application needs.
Targeted density control: Produces loose fill with a density range of 0.4lb/cuft - 0.55lb/cuft, matching typical client requirements for cushioning performance and packaging weight.
Professional on-site support: Plastec representatives provide on-site factory configuration guidance, full operation training, and production process support—simplifying equipment commissioning and us.
| Max Capacity | 100kg/hr (220lb/hr) |
| Screw Size | 75mm x 305mm |
| Main Motor | 37kW (50hp) |
| Heater Band | 4kW |
| Cutting Motor | 0.75kW (1hp) |
| Weight | 750kg (1700lbs) |
| Dimensions | 1800mm x 950mm x 2200mm (6' x 3.5' x 7.5') |
| Power | 60 Amps @ 480 Volts with Neutral + 15A @ 120V |
| Customizable | ABB spec for USA transformerless |
