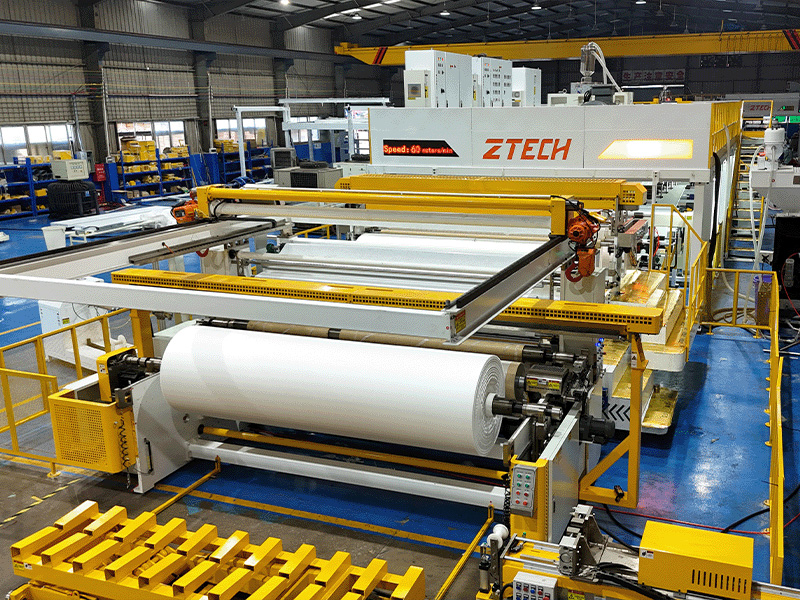

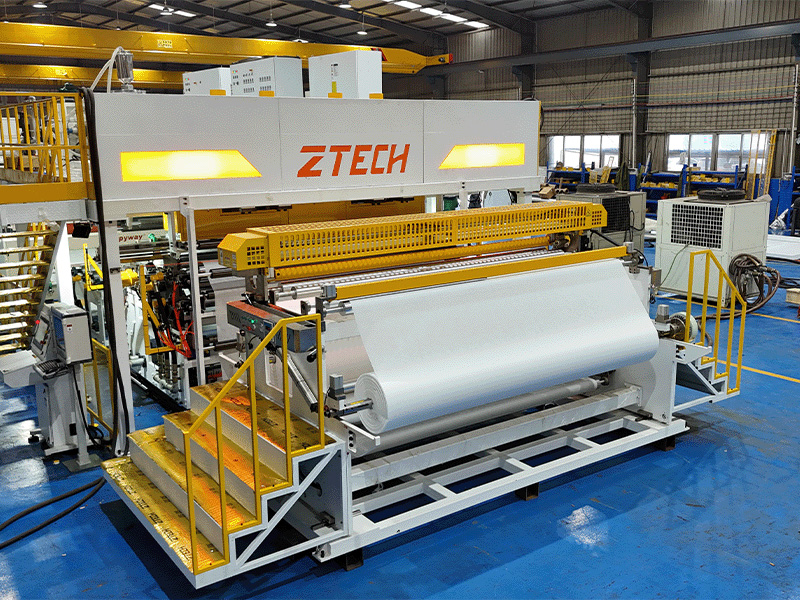

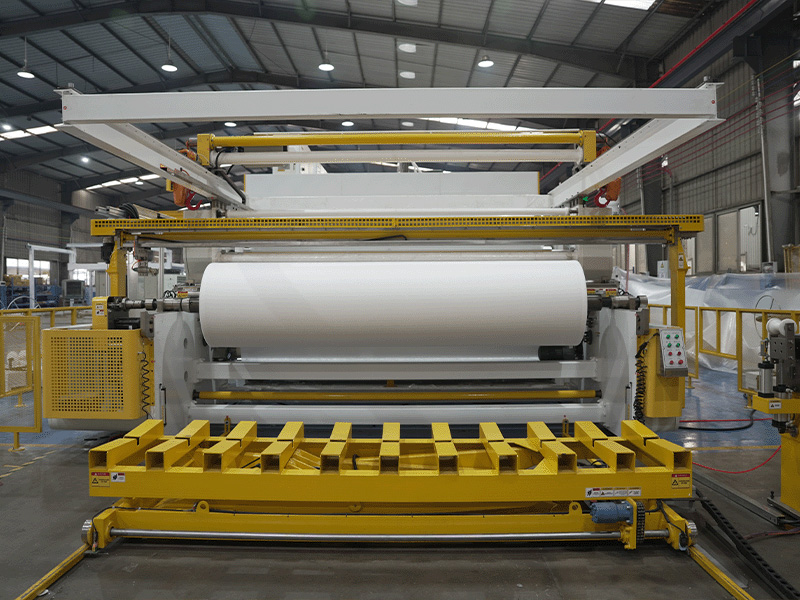

The line adopts an integrated process combining extrusion and lamination. First, PE or PP raw materials are fed into a high-efficiency extruder, where they are fully melted and plasticized. The molten material is then extruded through a precision die head into a uniform film. Meanwhile, the non-woven fabric substrate is unwound and guided to the lamination unit. In this unit, the extruded thermoplastic film is accurately coated onto the non-woven fabric under controlled temperature and pressure, forming a composite material. After lamination, the composite undergoes cooling, thickness measurement, edge trimming, and winding processes. The entire production line is equipped with an intelligent control system to monitor and adjust key parameters such as extrusion temperature, lamination pressure, and speed in real-time, ensuring consistent product quality.
Dual Material Compatibility: Capable of using both PE and PP materials, providing flexibility to meet different product performance and cost requirements.
Precise Coating Technology: Equipped with a high-precision die head and lamination unit, enabling uniform coating of molten thermoplastic materials onto non-woven fabrics with accurate thickness control.
Intelligent Process Control: Utilizes a PLC-based control system and touchscreen HMI for real-time monitoring and adjustment of extrusion temperature, lamination pressure, speed, and other parameters, ensuring precise control over the production process.
High Production Efficiency: Operates at high speeds while maintaining stable production, significantly improving the efficiency of non-woven fabric composite processing.
Reliable Equipment Performance: Incorporates high-quality extruder components, bearings, and control devices, ensuring stable operation, low failure rates, and a long service life.
Customizable Composite Properties: Can be customized to adjust the coating thickness and process parameters to achieve specific composite material properties, such as enhanced waterproofness or breathability.
| Model | Dimension (m) | Power (kw) | Max Processing Width (mm) | Processing Speed (m/min) |
| ZT-PCF1600 | 18*7*3 | 50 | 1600 | 50-100 |
| ZT-PCF1800 | 18*8*3 | 65 | 1800 | 50-100 |
| ZT-PCF2000 | 18*9*3 | 80 | 2000 | 50-100 |
| ZT-PCF2200 | 18*10*3 | 95 | 2200 | 50-100 |
