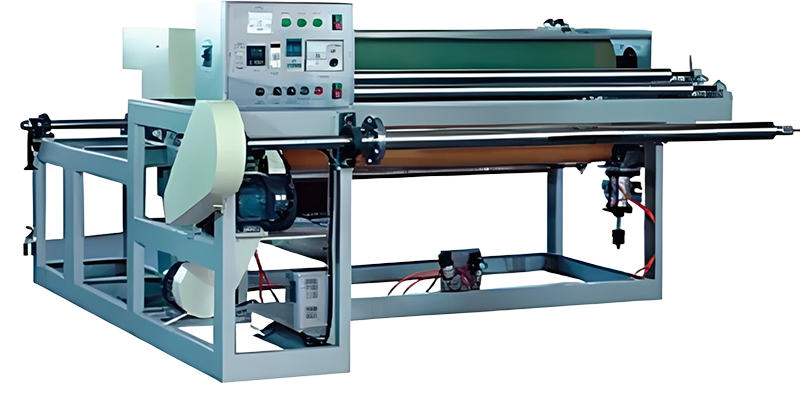

EPE Foam Coating Machine

gnANmq9w67/imgs/20260605/c2973c9fb3bf91dca540d454d9125fb5.png

Description

This machine adopts a streamlined process to achieve precise lamination. EPE foam sheets are first fed into the machine. Simultaneously, the PE film or aluminum foil roll is unwound and guided to the coating unit. In this unit, under controlled temperature and pressure, the PE film or aluminum foil is uniformly and firmly laminated onto the surface of the EPE foam sheet. The machine is equipped with adjustable tension control systems for both the EPE foam and the laminating material (PE film/aluminum foil) to ensure smooth feeding and precise alignment during the lamination process. After lamination, the composite material exits the machine, ready for further processing or direct use.

Feature

Efficient Lamination: Specifically designed for efficiently laminating one layer of PE film or aluminum foil onto EPE foam sheets, enhancing production speed and efficiency.
Dual Material Compatibility: Capable of laminating both PE film and aluminum foil onto EPE foam, providing flexibility to meet different product performance requirements (such as waterproofing, heat reflection, etc.).
Precise Alignment & Bonding: Equipped with tension control and alignment systems to ensure accurate positioning and firm bonding between the EPE foam and the laminating material.
Adjustable Parameters: Allows for adjustment of lamination temperature and pressure, enabling optimal bonding quality for different thicknesses and types of EPE foam, PE film, and aluminum foil.
User-friendly Operation: Features an intuitive control panel and simple feeding mechanism, making it easy for operators to set up and operate the machine.
Reliable Performance: Incorporates high-quality components and a robust structure, ensuring stable operation and long service life, even in continuous production environments.

Technical Parameters

Model	ZT-1400C	ZT-1750C	ZT-2050C	ZT-2250C
Film Thickness	0.01-0.05	0.01-0.05	0.01-0.05	0.01-0.05
Max.Width(mm)	1300mm	1600mm	1900mm	2100mm
Heating Style	Heating Pipe
Roller Net Size	2*2mm	2*2mm	2*2mm	2*2mm
Main Motor	2.2kw	2.2kw	3.7kw	3.7kw
Heating Pipe	D19*1450	D19*1750	D19*2050	D19*2250
Total Power	18kw	18kw	22kw	22kw
Speed	0-30m/min	0-30m/min	0-30m/min	0-30m/min
Dimension	600025001800	600028001800	600031001800	600033001800
Weight	1.0T	1.2T	1.4T	1.6T

Application

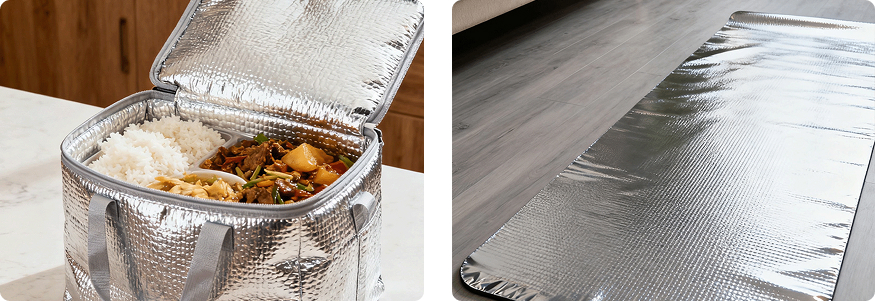

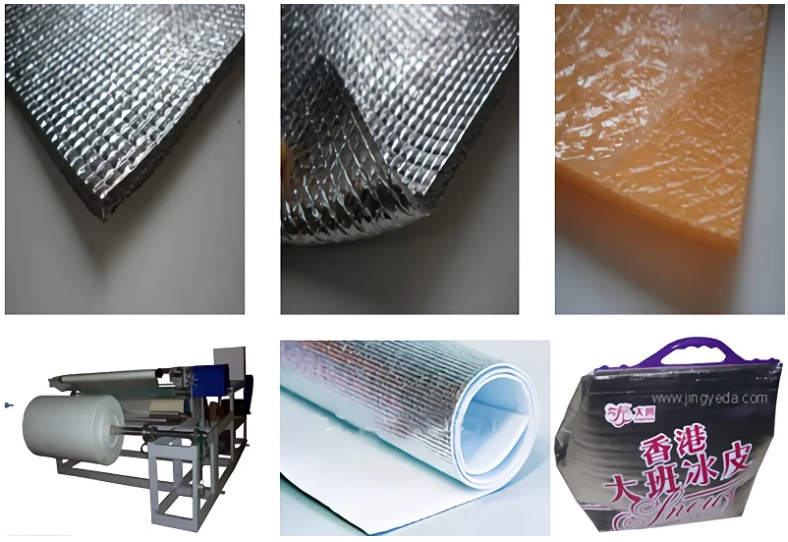

The composite EPE foam materials produced by this machine have extensive applications:

Packaging Industry: Used for premium packaging of electronics, cosmetics, and delicate gifts. Laminating with PE film enhances waterproofness, while laminating with aluminum foil provides additional protection against moisture and light.
Construction & Insulation: Applied as insulation materials for buildings. Aluminum foil-laminated EPE foam offers excellent heat reflection and insulation properties, suitable for roof and wall insulation systems.
Automotive Sector: Utilized in car interior insulation and soundproofing. PE film or aluminum foil-laminated EPE foam helps reduce noise and regulate temperature inside the vehicle.
Hygiene Products: Used in the production of disposable hygiene items, such as backing materials for medical mats or protective covers, where PE film-laminated EPE foam provides waterproof and easy-to-clean surfaces.
Craft & Display: Made into decorative boards and display props. Laminated EPE foam offers a smooth, attractive surface and enhanced durability for crafting and exhibition purposes.

gnANmq9w67/imgs/20260605/71cc72ea365317844559145be8bbd278.jpg
